Conveyors for Loose product UK Manufactured

This customer projects was to elevate a food mix of crumble to a hopper.

Click to Call Tel: 01525 850316

This video is a sample of other projects transporting loose products using corrugated side walls.

The video above shows loose raisin on a food grade trough belt conveyor with fabrication in stainless steel

Conveyors handling loose products such as powder, pellets, tea, coffee beans and cereal are easily conveyed on troughed belt conveyors.

Back to the Case Study Conveyor Description

Flighted incline conveyor belt fabricated in stainless steel with food quality belting with a belt release mechanism for easy cleaning.

Flighted Conveyor Design Information
Product:	Raw Loose Crumble Type Product
Density:	Raw Loose Crumble Type Product
Throughput:	200-2000 kg/hr = 3-34 kg/min
Belt Speed:	10 m/min

Flighted Conveyors Operation

1 No. Flighted Inclined Belt Conveyor 600mm wide x 4500mm long at 45 degrees, the belt had a central tracking strip and comes with 70mm high flights @ 250mm pitches.

Complete with fixed side guides 100mm high run the length of the conveyor, tight against the belt edge and curved over at the end. There is a belt release mechanism for cleaning, and bolt on under guards were included.

Product is received via an infeed hopper and product discharges into a hopper.

The conveyor was mounted on a box section frame with adjustable feet +50mm; a fixed speed shaft mounted geared motor end drive unit was included.

General construction is stainless grade 304 and food quality materials where possible

For another project handling loose products go to our clients page loose pulses and beans conveyor

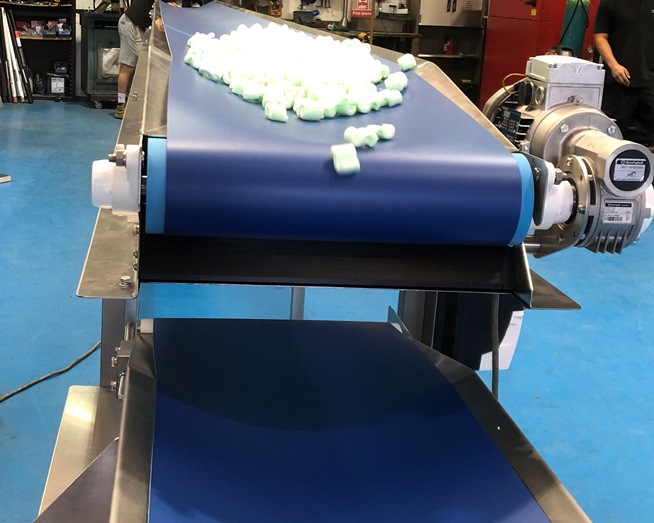

Photos ~ Flighted Conveyor System
